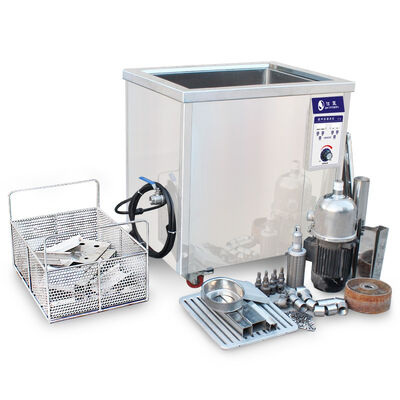

38L Ultrasonic Cleaning Machine for Turbine Fuel Nozzle
Skymen Single Tank Industrial Ultrasonic Cleaner JP-120ST
This 38L ultrasonic cleaning machine with 600W power is specifically designed for cleaning turbine fuel nozzles and other industrial components.
How Ultrasonic Cleaning Works
Ultrasonic cleaning utilizes cavitation in liquids to accelerate fluid movement and dislodge contaminants. This process effectively disperses, emulsifies, and removes dirt layers through high-frequency vibrations. The equipment consists of an ultrasonic cleaning tank and generator, working together to create powerful cleaning action suitable for various industrial applications.
Technical Specifications
| Parameter |
Specification |
| Model |
JP-120ST |
| Frequency |
40KHz / 28KHz |
| Housing Material |
SUS304 |
| Tank Material |
SUS304 / 316 |
| Transducer |
12 pcs |
| Ultrasonic Power |
600W |
| Heating Power |
1500W |
| Tank Capacity |
38L |
| Timer |
Digital 1-99 min adjustable |
| Heater Range |
0-80°C |
| Voltage |
AC 100-120V, 60Hz / AC 220-240V, 50Hz |
| Tank Size |
500×300×250 mm |
| Unit Size |
735×500×695 mm |
| Net Weight |
65 Kg |
| Gross Weight |
70 Kg |
| Certification |
ISO9001:2008, CE & REACH |
Key Features
- Rapid removal of dirt and oil through strong ultrasonic cavitation
- Adjustable timer from 1 second to 500 hours
- Special basket for small parts cleaning and drainage system
- Automatic stopwatch for working and maintenance time management
- Residual-current circuit breaker for safety protection
- Stainless steel tank with excellent wear resistance and long service life
- Industrial control chip microcontroller for secure and stable operation
- Multi-directional castors with brakes for easy mobility
- Korean transducer technology
- Independent PCB board design and production by Skymen
Package Contents
- 1 × Cleaning Machine
- 1 × Lid
- 1 × Basket
Product Images
Available Models
| Model |
Tank Size (mm) |
Volume (L) |
Ultrasonic Power (W) |
Heating Power (W) |
Transducer (pcs) |
| JP-120ST |
500×300×250 |
38 |
600 |
1500 |
12 |
| JP-180ST |
500×350×300 |
53 |
900 |
1500 |
18 |
| JP-240ST |
550×400×350 |
77 |
1200 |
3000 |
24 |
| JP-300ST |
550×450×400 |
99 |
1500 |
4500 |
30 |
| JP-301ST |
800×300×400 |
96 |
1500 |
4500 |
30 |
Custom Sizing Available: From 10 gallons to 200 gallons, sizes can be customized to meet your specific requirements.
Applications
Electronic factories, utensils, hardware, machinery, communication equipment, biological instruments, medical instruments, glasses, optical components, textile equipment, auto parts, ships, aviation components, mining equipment, and commercial cleaning applications.
Cleaning Results
Frequently Asked Questions
What frequency is better for my parts?
Frequency selection depends on the type of pollutants. 28kHz provides stronger cleaning action, ideal for automotive parts (removing oils, grease, pastes). 40kHz is better for PCB boards and electronic components. Higher precision goods typically require higher frequencies.
Can ultrasonic cleaning damage parts?
Despite the powerful implosion effects (thousands per second), the cleaning process is safe and will not damage properly handled components.
What cleaning solution should I use?
Various specialized formulas are available for specific applications. Proper selection is crucial for optimal cleaning performance and to prevent unwanted reactions with workpieces.
Is rinsing required after cleaning cycles?
Rinsing is recommended to remove any chemical residues that could be harmful to parts. This can be done in your ultrasonic cleaner, a clean water bath, or using tap, distilled, or deionized water.
Warranty & Support
1-Year Warranty: Skymen provides comprehensive technical support. During the warranty period, replacement parts are supplied free of charge. Technical assistance remains available beyond the warranty period.
About Skymen
Skymen Cleaning Equipment Shenzhen Co., Ltd. has over 10 years of experience in ultrasonic cleaner manufacturing. We specialize in R&D, production, and sales of high-quality ultrasonic cleaning equipment. Our engineering team can design custom solutions for non-standard requirements.
