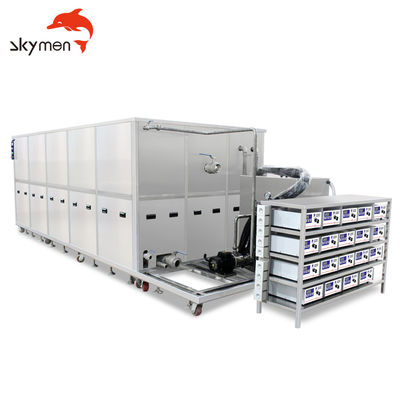

36kW Ultrasonic Industrial Cleaner 4500L Capacity SUS316 Tank

• Model: JTS-1720
• Capacity: 4500L
• Internal tank inner dimension: 2m × 1.5m × 1.5m (L × W × Deep)
• Transducer: 720pcs (20 pcs ultrasonic transducer box side mounted)
• External sweep generator: 20pcs (with generator shelf)
• Ultrasonic frequency: 28KHZ (40khz optional available)
• Ultrasonic power: 36KW
• Heating power: 36KW
• Timer: 1min-99hours adjustable
• Heater: 25°C to 95°C adjustable
• Material: AISI 304 stainless steel housing, Tank made of AISI 316L with bottom support frame
• Load weight: 1500KGS
• Power supply: machine AC380V, 50HZ, 3 Phase; generator power supply AC220V, 50HZ, 1 phase
• 1 year warranty and technical support for life
• Stainless steel wall 3mm thickness shell, durability and anti-rust
• With support feet, castor, inlet valve and drainage valve and cover lid and support frame
• Overall size: approximately 2.8m × 2.1m × 2.2m
• Gross Weight: 2000 KGS

• Heating temperature range from normal to 95°C, adjustable
• Ultrasound working cycle 1min~99hours adjustable
• Machine equipped with overflow system of the washing solution
• Inner tank made of corrosion-resistant AISI 316L stainless steel

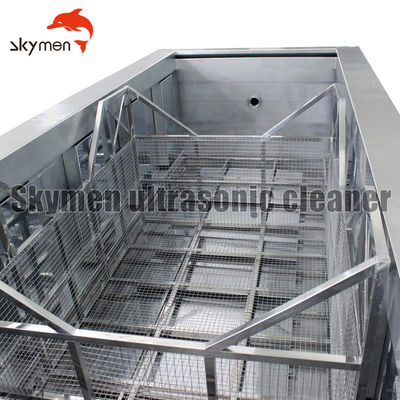

• Basket made of corrosion-resistant AISI 316L stainless steel
• Housing/construction material made of AISI 304 stainless steel
• AISI 316L material can bear both alkaline, neutral, and strong acid liquid solution

During production and further processing of material goods in industrial settings, precision cleaning is essential. Only clean parts without residue can be properly coated, varnished, glued or soldered. Our professional cleaning systems are used for:

• Pre-production cleaning before machining
• Final cleaning before delivery
• Component and assembly overhaul maintenance
• Quality control processes
